Cateter de Imagen Dragonfly Opstar™: O novo desenho proporciona maior segurança na entrega.


O Cateter de Imagem Dragonfly OpStar™ é usado para obter imagens intravasculares por meio da Tomografia de Coerência Óptica (OCT). O Cateter de Imagem Dragonfly OpStar™ é compatível com OPTIS™ Next System (software Ultreon™ 1.0 e 2.0) e OPTIS™ Mobile System software AptiVue™ ou superior).¹

O novo design do cateter proporciona maior segurança na entrega e mais precisão nas decisões de tratamento ²
  • Navegar pela anatomia tortuosa e acessar lesões distais.
  • Fornece imagens mais brilhantes, com maior qualidade²

Capacidade de entrega segura

CAPACIDADE DE
CRUZAMENTO
MELHORADA

• Baixo perfil de Ponta
• Perfil de cruzamento 26%
mais baixo²
EMPURRE
APRIMORADO

• Capaz de resistir
47% mais de força proximal
sem prolapsar²
 RASTREABILIDADE
MELHORADA

• Porto reforçado
• Porta RX da guia sem inclinação
• Camada interna lubrificante para
uma menor interação com o fio guia²



Dragonfly OpStar™
Catéter de imagen





Decisões de tratamento precisas

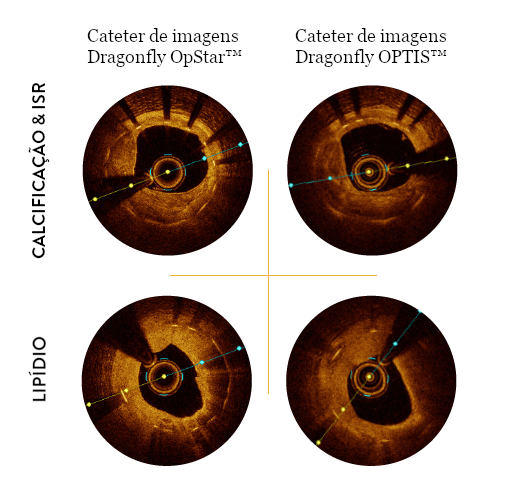

Novo O redesenho da lente fornece imagens 44% mais brilhantes, para ajudar a melhorar a identificação da Lâmina Elástica Externa (EEL) e a morfologia2


Construção atualizada para
melhorar a durabilidade, brilho e
qualidade de imagem.

Maior foco onde
é necessário

*Dados arquivados em Abbott. Comparações versus a geração anterior do dispositivo, o cateter de imagens Dragonfly™ OPTIS™


 NOTA: Imagens adquiridas com o software software de imagem AptiVue™²



Dragonfly OpStar™
Catéter de imagen


Dragonfly OPTIS™
Catéter de imagen

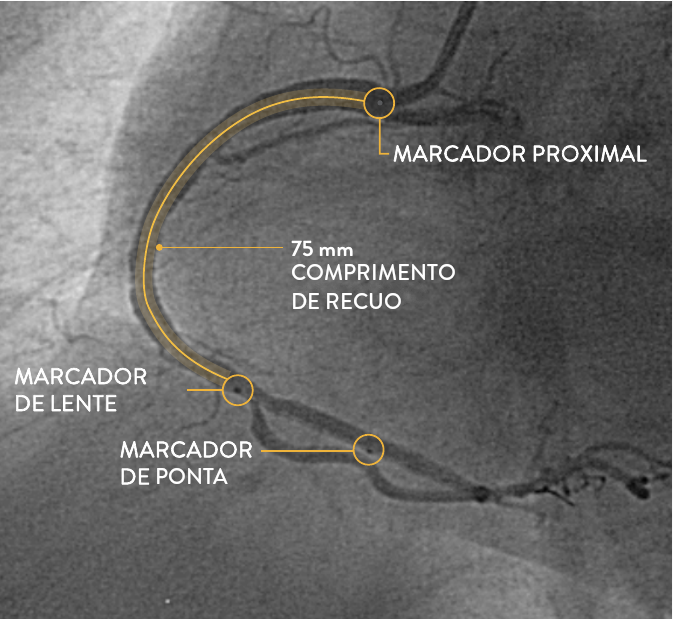

NOVO A localização do marcador proximal é
mais distante da lente de imagem para poder
realizar um recuo de 75 mm2

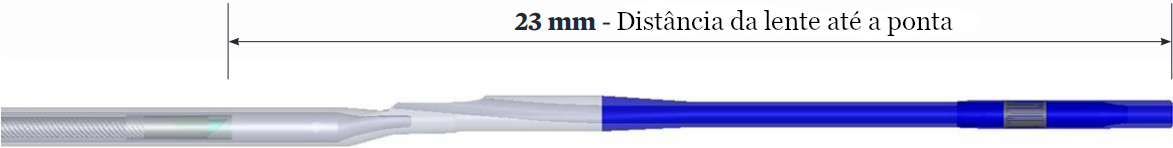

NOVO Marcador de lente agora imediatamente
proximal à lente de imagem
para um co-registro mais preciso.

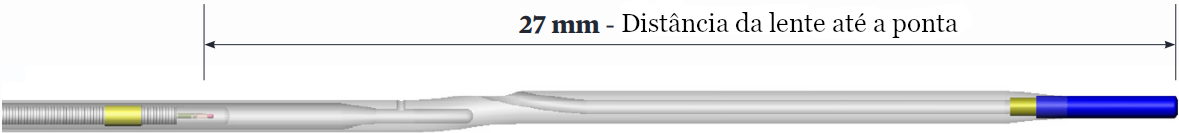

Compare com a lente do cateter de imagem
Dragonfly™ OPTIS™, que é proximal à lente
por 1-2 mm2.
